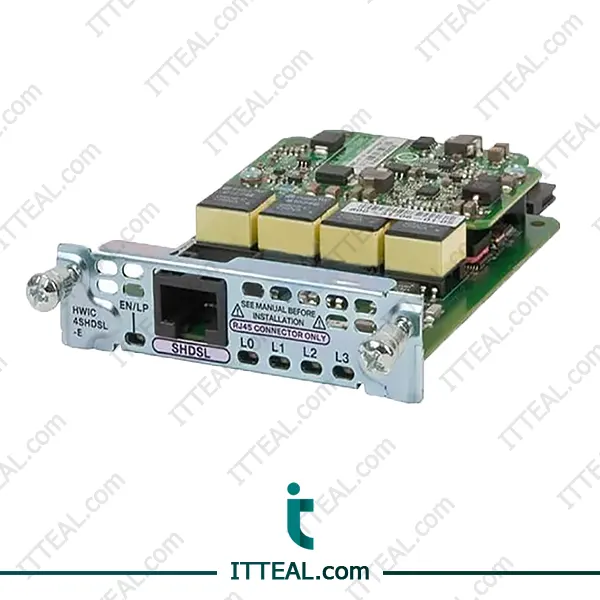

Cisco HWIC-4SHDSL

Cisco HWIC-4SHDSL Overview

Cisco Integrated Services Routers offer a wide variety of WAN connectivity modules to accommodate the range of application needs in customer networks. The Cisco 2- and 4-Pair Symmetric High-Bit-Rate DSL High-Speed WAN Interface Cards offer G.SHDSL based WAN connectivity for modular routers deployed in small to medium-sized businesses and enterprise branch offices.

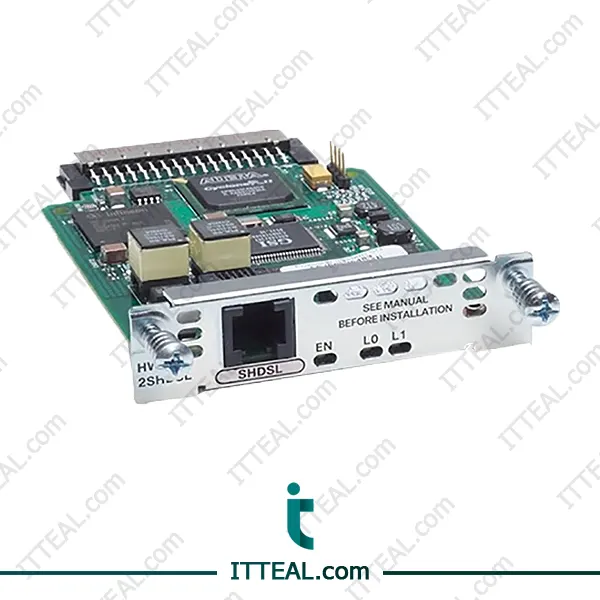

The 2-pair (HWIC-2SHDSL) and 4-pair (HWIC-4SHDSL) symmetric high-bit-rate DSL high-speed WAN interface cards (HWICs) provide G.SHDSL connectivity to a Wide Area Network. The 4-pair symmetric G.SHDSL HWIC provides two ports of 4-wire or four ports of 2-wire connectivity options, whereas the 2-pair G.SHDSL HWIC provides two ports of 2-wire or one port of 4-wire connectivity options. The 4-pair symmetric G.SHDSL HWIC also allows bonding single or dual-pair G.SHDSL ports up to a single 8-wire interface with increased bandwidth by using Inverse Multiplexing over ATM (IMA) or data interleaving with M-pair mode. These cards are supported in all integrated services routers that have HWIC slots.

The 2-pair and 4-pair G.SHDSL HWICs supersede the existing G.SHDSL WAN Interface Card (part number WIC-1SHDSL-V3), which is a WIC-based G.SHDSL solution. The two new G.SHDSL HWICs provide higher performance and increased reach when compared to the G.SHDSL WIC.

G.SHDSL technology offers customers high-speed, symmetrical WAN connectivity at a lower monthly cost than traditional WAN circuits. The 2- and 4-pair G.SHDSL HWICs together with Cisco integrated services routers provide businesses the necessary bandwidth for critical traffic such as voice and video conferencing, and enable customers to save money by integrating voice and data traffic on the same WAN link. Service providers can increase subscriber revenue by bundling services and offering differentiated service levels through service-level agreements.
