ARISTA SFP-10G-SR

ARISTA SFP-10G-SR Overview

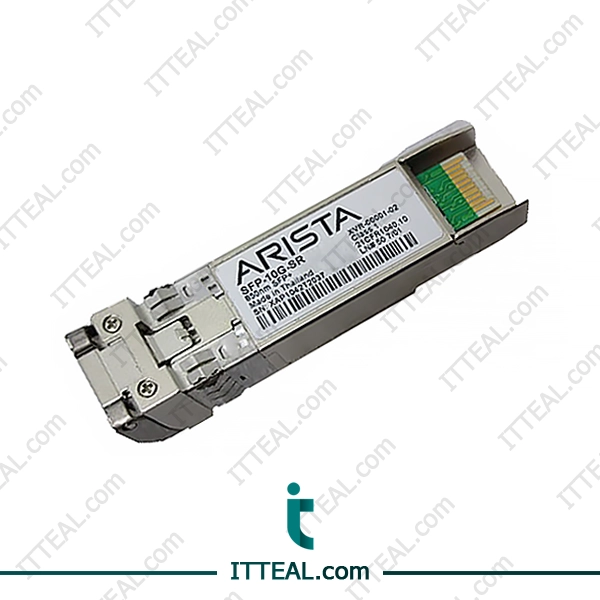

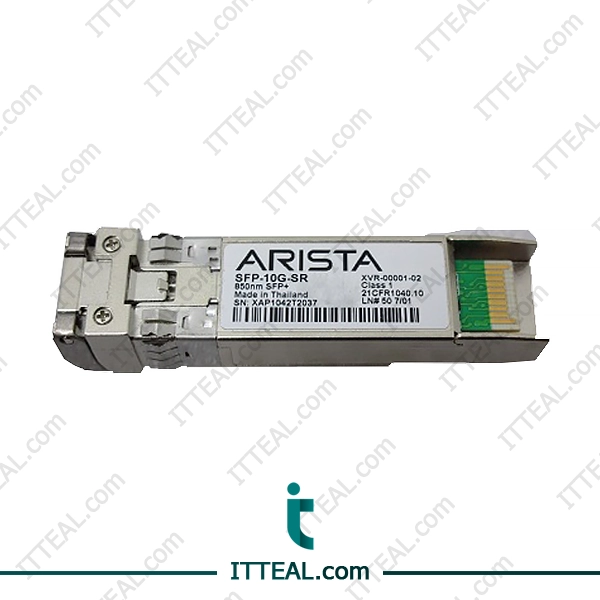

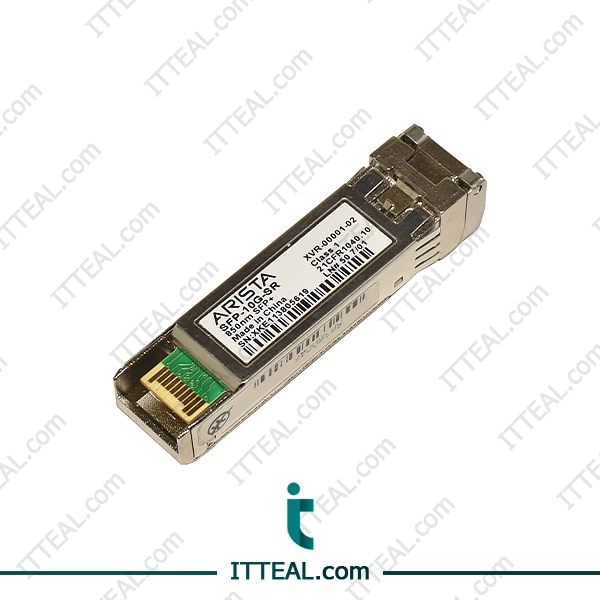

ARISTA SFP-10G-SR transceiver module is an advanced SFP+ form factor solution designed for high-speed networking applications. With a maximum data rate of 10.3125 Gbps, this module operates at a wavelength of 850 nm, making it ideal for short-range connections in data centers and enterprise networks.

The following are the features of the SFP-10G-SR :

• TX Power: Ranges from -7.3 dBm to -1 dBm.
• Receiver Sensitivity: Less than -11.1 dBm for enhanced signal integrity.
• Power Budget: A total of 3.8 dB to accommodate network fluctuations.
• Receiver Overload: Handles up to -1 dBm without signal degradation.
• Typical Power Consumption: ≤ 1 W, making it an energy-efficient choice.
• Extinction Ratio: Greater than 3 dB for improved signal quality.
• DDM/DOM Support: Integrated Digital Diagnostic Monitoring (DDM) and Digital Optical Monitoring (DOM) for real-time performance tracking.
• Commercial Temperature Range: Operates effectively between 0 to 70°C (32 to 158°F), suitable for various environments.
• Core Size: Compatible with 50/125 µm multimode fiber.
• Modulation Type: Employs NRZ (Non-Return-to-Zero) modulation for efficient data transmission.
• Transmitter Type: Utilizes a VCSEL (Vertical-Cavity Surface-Emitting Laser) for efficient signal transmission.
• Receiver Type: Features a PIN (Positive-Intrinsic-Negative) receiver for reliable data reception.
